Video Production Gear

The ProductionVIEW HD-SDI MV is an all-in-one camera control console with HD-SDI/SDI video switching/mixing, a built-in multiviewer, lower screen graphics, and automated control functionality.

New Multi-View Input Screens allow the user to select between screen layouts that display four, five, or six inputs. When set up with four or five preview windows, the preset video thumbnails become larger on the bottom of the screen. In addition, the Preview and Program windows can be swapped on the multiviewer output.

With Vaddio's TeleTouch touch screen monitors, all live video feeds can be selected and up to 12 video thumbnail presets can be created, recalled, and stored by simply touching the monitor. The thumbnails are a snapshot of what the camera's preset shot looks like, this making storing and recalling presets even easier. Simply touch a thumbnail and the camera will pan, tilt, and zoom to that position. The Cut, Wipe, and Fade buttons illuminate on the multiviewer display, giving a visual indication of which effect is active.

An additional capability of the system is Dual Bus Multiview output. This allows the user to switch between Preview and Program as discrete outputs - with one going to an IMAG Projector and the other going to a recording device.

All inputs are autosensing for video resolution, control, and camera type. Video inputs include five HD-SDI/SDI (480i to 1080p) inputs on BNC connectors and a single DVI-I input on channel six that allows for multiple formats (DVI-D, YPbPr, RGBHV and HDMI) with 36 additional input resolutions.

Equipment
Gear Description

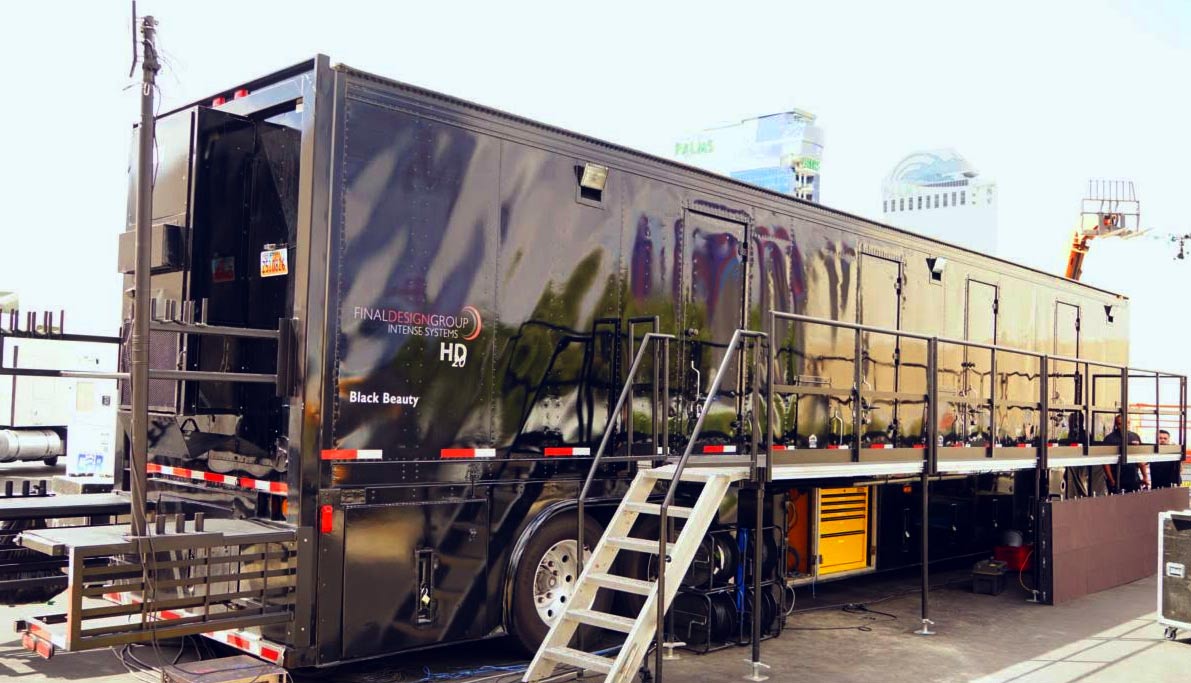

Our production truck (Black Beauty) is a state-of-the-art video production trailer. It consists of 4 rooms: master control, audio, social media, and a staff room.

More...
HD Panasonic AG-HPX-500 P2 HDC camera. (9 Units Available).
  • HPX-500 Camera
  • Studio Lens
  • AB Gold Mount
  • Power supply
  • Viewfinder
  • Lens
  • Monitor
  • Focus controller
  • Zoom controller

More...

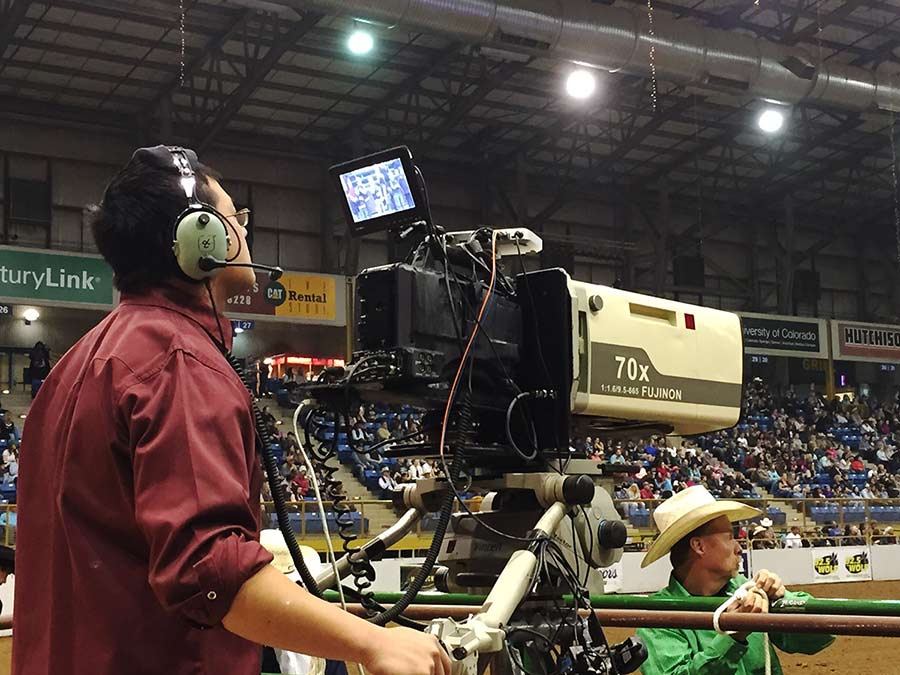

70x sports box lens kit with full servo zoom and focus controls, support bracket, 2 x extender.

More...
Dactylcam Guerilla Rig
  • Up to a 50 lb payload - depending on tension of your line.
  • Lightweight Strength w 6061-T6 Aluminum Frame Structure
  • 1,200 ft line spans and speeds up to 40+ mph
  • Adjustable Motor Swing: adjusts for variable tension on the line
  • Quick Hook Asymmetrical Design: Easy mounting on line

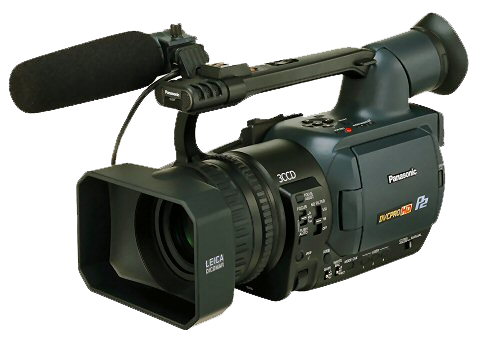

HD Panasonic HVX-200 (2 units available)
  • 1-HVX-200
  • 1-Component to Cat5 balun (3xBNC adapters-Monoprice#4126)
  • 1-D-Terminal to component cable (B&H # CADTC1000)
  • 2-Panasonic CGR-D28 Batteries
  • 1-AC power adapter/charger
  • 1-Cat5 cable- length up 1000'

  • 1080i/720p
  • DVCPRO HD
  • Widescreen Aspect Ratio
  • 24-Frame HDTV

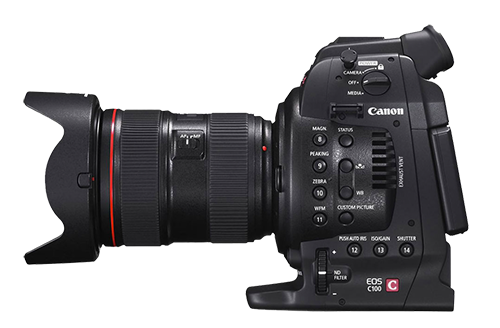

Canon C100 Camera (1 available)
  • Super 35mm 8.3MP CMOS Sensor
  • 1920x1080 60/50i, 24/25p, PF30, PF24
  • Dual Pixel CMOS AF Hardware Upgrade
  • EF Lens Mount
  • ISO 320 to 80,000
  • Uncompressed HDMI Output with Timecode
  • Canon Log and Wide DR Gamma
  • Dual SD/SDHC/SDXC Memory Card Slots
  • Two XLR Audio Connectors
  • Built-In ND Filters with Manual Controls
Teradek Bolt Pro 2000 Professional Wireless HD-SDI Video TX/RX
  • Transmits HD Video / Audio Up to 2000 ft
  • Supports Formats Up to 1080p60
  • Zero Frame Delay
  • Transmitter Features Loop Through SDI
  • Suitable for Outdoor or Indoor Use
  • Dynamic Frequency Selection
  • Two Channels of Audio
Teradek Bolt Pro 300 3G-SDI Wireless Transmitter-Receiver Set
  • Uncompressed Video & Audio Transmission
  • Supports Resolutions Up to 1080p60
  • 300' Distance with 1ms Latency
  • Uses License-Free 5 GHz Frequency
  • 3G-SDI Input & Loop; 3G-SDI Output
  • Video Output via USB 3.0 GRAB Engine
  • Internal Antennas
Defy G12 Gimbal

  • lightweight carbon fiber tubes and high quality aluminum components
  • Eliminates clutter from wiring
  • Easy to hand tighten, adjust, and lock in place with no tools required
  • Roll arm utilizes a double locking clamp, ensuring heavy payloads don’t move or shift during use
  • Quickly adapt to various cameras and lenses during a shoot
  • Quick release plate makes it easy to move from the G12 and go straight to tripod or other mounts
Phantom V Series High Speed Cameras

  • 7.1 seconds at maximum frame rate, maximum bit depth, largest resolution and into maximum internal memory
  • 2 Gpx/sec, 4Mpx camera
  • Full resolution of 2400 x 1800
  • Max speed at reduced resolution of 96 x 8 is 150,000 fpS
  • IRIG in/out (modulated or unmodulated)
  • Strobe output
  • Gb Ethernet for both control and data
HD Sony HDR-CX230 (4 Units Available)
  • 1-HDR-CX230 camera
  • 1-HDMI to Cat5 TMDS & DDC adapter
  • 1-HDMI port saver 360 degree
  • 1-HDMI micro to full
  • 1-Cat5 98ft snake (TMDS & DDC)
  • 2-Sony NP-FV100 or FV70 Batteries


  • Super 35mm 8.3MP CMOS Sensor
  • 1920x1080 60/50i, 24/25p, PF30, PF24
  • Dual Pixel CMOS AF Hardware Upgrade
  • EF Lens Mount
  • ISO 320 to 80,000
  • Uncompressed HDMI Output with Timecode
  • Canon Log and Wide DR Gamma
  • Dual SD/SDHC/SDXC Memory Card Slots
  • Two XLR Audio Connectors
  • Built-In ND Filters with Manual Controls
RoboShot 30 Remote Canon 30X cameras. (4 Available)
  • Vaddio Remote switcher
  • Touch Screen
  • 30x zoom with up to a 63.7° wide horizontal field-of-view
  • Sony 1/2.8-Type Exmor CMOS imaging sensor
  • Native HD resolution of 1080p/60
  • Tri-Synchronous Motion technology that allows all three axis to pan, tilt and zoom simultaneously
  • Web-based control panel to set the speed presets

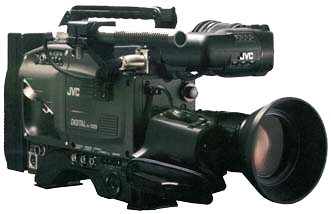

JVC KY-27
  • 800 lines of horizontal resolution
  • 1 Lux sensitivity in LOLUX with 33 dB gain
  • 63 dB signal to noise ratio
  • Very low vertical smear
  • Full auto shooting with ALC/EEI
  • F9 at 2,000 lux sensitivity
  • Color Matrix
  • Multi-zone intelligent auto iris
  • Digitally controlled by built in CPU
  • ALC with EEI
  • Full time auto white
  • 5,000 ft triax and remote panel control
Canon GL2
  • 3 CCD
  • 530 lines of resolution
  • Pixel Shift Technology
  • DV Format
  • wide dynamic range
  • low color noise
  • natural color resolution
  • low aliasing

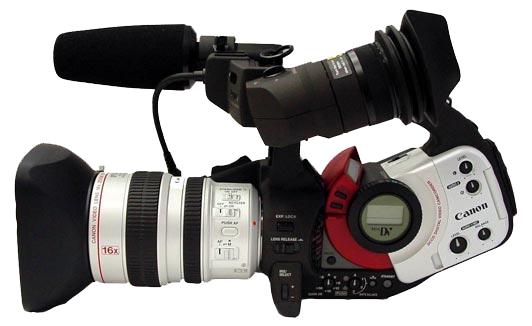

Canon XL1
  • 3 CCD
  • Pixel Shift Technology
  • DV Format
  • PCM digital stereo audio
